Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 7641453200
Ceratizit Material Number: 12225506
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

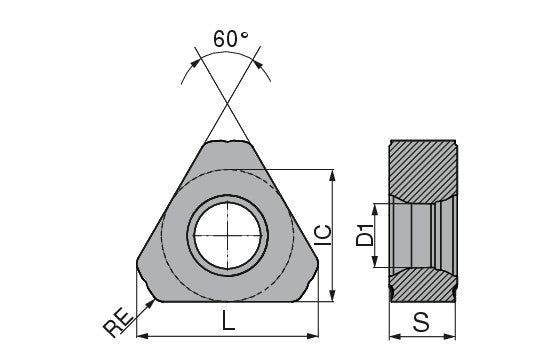

| Properties | ||
|---|---|---|
| Name | Ceratizit DE-TNMU 220612-RM CTCP125 7641453200 | |
| EDP # | 0718215 | |
| Weight (1 pc.) | 0.5 oz | 13.9 g |
| designation | 220612EN | |
| Corner radius / RE | 0.0472' | 1.200 mm |
| Cutting edge length / L | 0.8661' | 22.000 mm |
| Insert thickness / S | 0.2500' | 6.350 mm |
| Fixing hole diameter / D1 | 0.1811' | 4.600 mm |
| Inscribed circle diameter / IC | 0.5000' | 12.700 mm |
| Chip breaker (Ceratizit) / CBMD | -RM | |
| Coating name / Grade (Ceratizit) / COATN | CTCP125 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
