Ceratizit OC50R-X32-4S-R05H MaxiGroove 5° Reinforced Tool Head For Radial Clamping OvalFlex 7459650500 (0718216)
Ceratizit OC50R-X32-4S-R05H MaxiGroove 5° Reinforced Tool Head For Radial Clamping OvalFlex 7459650500 (0718216)
Couldn't load pickup availability
Ceratizit Article Number: 7459650500
Ceratizit Material Number: 12234243
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

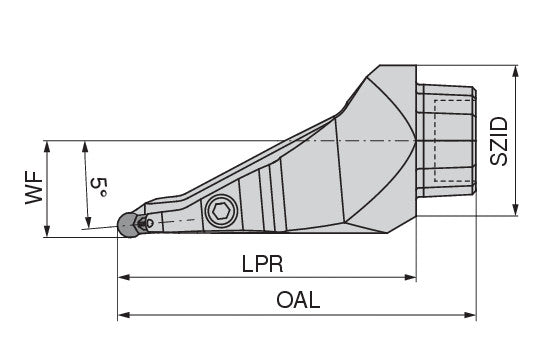

| Properties | ||
|---|---|---|
| Name | Ceratizit OC50R-X32-4S-R05H MaxiGroove 5° Reinforced Tool Head For Radial Clamping OvalFlex 7459650500 | |
| EDP # | 0718216 | |
| Workpiece Material(s) | Aluminum (Green) Cast Iron (Red) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 45.0 oz | 1285 g |
| Product-Carbon-Footprint | B | |
| Productsystem | OvalFlex | |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Functional width / WF | 1.2598" | 32.000 mm |
| Insert | X32.. R4.. | |
| Designation | OC50R X32 4S R 05H | |
| nominal size / SZID | 50.0000" | 1270.000 mm |
| Usable length / LU | 2.1654" | 55.000 mm |
| Machine interface size | OC50R | |
| Version | Right | |
Background Information:
CERATIZIT’s OvalFlex (OC) quick-change turning system. The oval clamping contour locates a head repeatably in seconds; OC50 heads clamp axially, OC50R/OC50S radially, and each mounts only its matching OvalFlex base holder (e.g. the VDI ISO 10889 to OC50/OC50R adapters).
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
