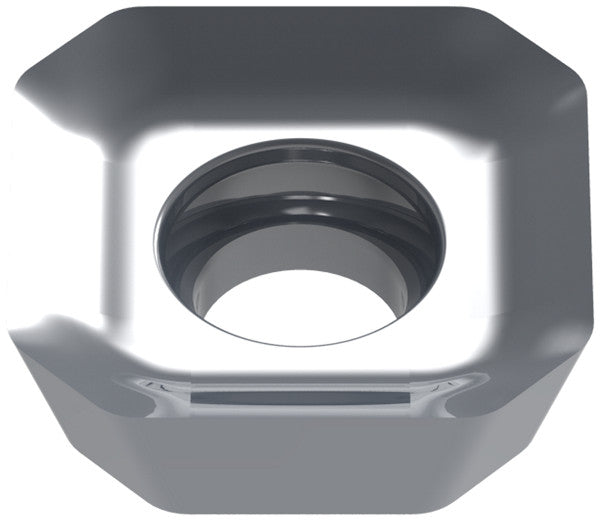

Ceratizit SDHT 1204AEFN-F10 CTPX715 CoreLine Carbide Milling indexable Insert 5116002502 (0719767)
Ceratizit SDHT 1204AEFN-F10 CTPX715 CoreLine Carbide Milling indexable Insert 5116002502 (0719767)
Couldn't load pickup availability
Ceratizit Article Number: 5116002502
Ceratizit Material Number: 12266532
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SDHT 1204AEFN-F10 CTPX715 CoreLine Carbide Milling indexable Insert 5116002502 | |
| EDP # | 0719767 | |
| Weight (1 pc.) | 0.2 oz | 7.0 g |
| Product-Carbon-Footprint | C | |

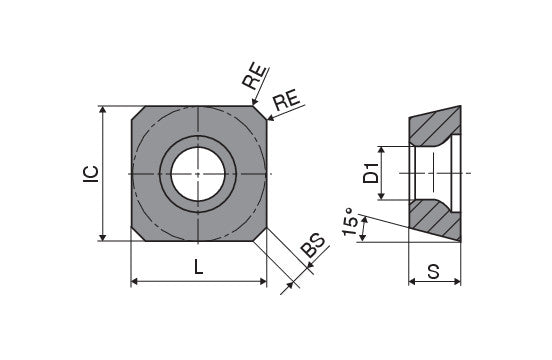

| designation | 1204AEFN | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Trailing edge length / BS | 0.0685" | 1.740 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Insert length / INSL | 0.6378" | 16.200 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
