Description
Ceratizit Article Number: 51083570
Ceratizit Material Number: 12273304
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit RDHX 0802M0SN-F50 CTCS245 MaxiMill Carbide Milling indexable Insert 51083570 | |
| EDP # | 0720531 | |
| Weight (1 pc.) | 0.1 oz | 2.4 g |

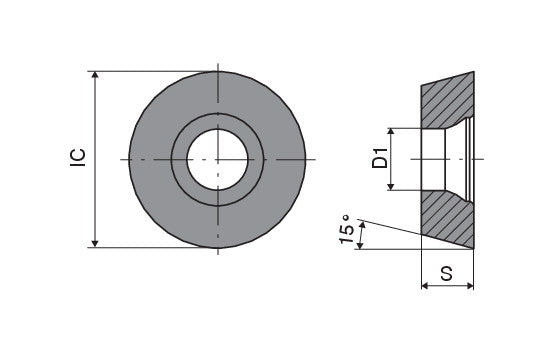

| designation | 0802M0SN | |
| Inscribed circle diameter / IC | 0.3150" | 8.000 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | D | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
