Description
Ceratizit Article Number: 7400000400
Ceratizit Material Number: 12310164
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

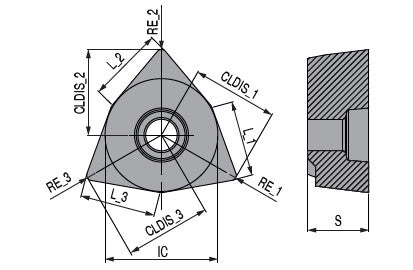

| Properties | ||
|---|---|---|
| Name | Ceratizit FT17 M 808080R08-M CTCP125 FreeTurn . 808080... 7400000400 | |
| EDP # | 0721810 | |
| Weight (1 pc.) | 1.0 oz | 28.4 g |
| Product-Carbon-Footprint | D | |
| designation | ft17 m 808080r08-m | |
| Corner radius 1 / RE_1 | 0.0315" | 0.800 mm |
| Corner radius 2 / RE_2 | 0.0315" | 0.800 mm |
| Corner radius 3 / RE_3 | 0.0315" | 0.800 mm |
| centre line distance 1 / CLDIS_1 | 0.5031" | 12.780 mm |
| centre line distance 2 / CLDIS_2 | 0.5031" | 12.780 mm |
| centre line distance 3 / CLDIS_3 | 0.5031" | 12.780 mm |
| Cutting edge length 1 / L_1 | 0.4449" | 11.300 mm |
| Cutting edge length 2 / L_2 | 0.4449" | 11.300 mm |
| Cutting edge length 3 / L_3 | 0.4449" | 11.300 mm |
| Insert thickness / S | 0.3598" | 9.140 mm |
| Fixing hole diameter / D1 | 0.1850" | 4.700 mm |
| Inscribed circle diameter / IC | 0.6693" | 17.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
