Description
Ceratizit Article Number: 5102256500
Ceratizit Material Number: 12374577
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

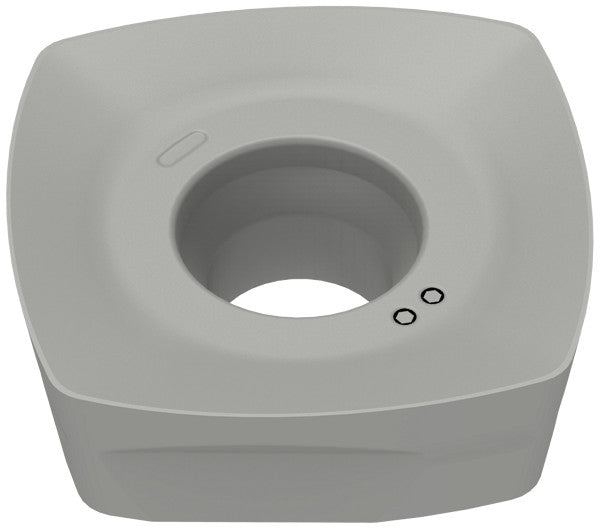

| Name | Ceratizit XOLX 190615ER-F40 CTCS245 MaxiMill Carbide Milling indexable Insert 5102256500 | |
| EDP # | 0721894 | |
| Weight (1 pc.) | 1.0 oz | 21.0 g |

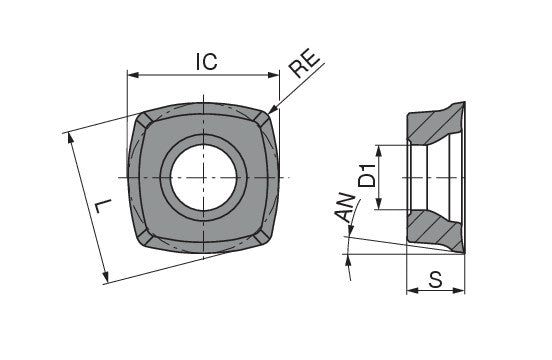

| designation | 190615ER | |
| Corner radius / RE | 0.0591" | 1.500 mm |
| Inscribed circle diameter / IC | 0.7535" | 19.140 mm |
| Fixing hole diameter / D1 | 0.2362" | 6.000 mm |
| Cutting edge length / L | 0.7480" | 19.000 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Clearance angle major / AN | 10 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | D | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
