Description
Ceratizit Article Number: 7400740201
Ceratizit Material Number: 12386740
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

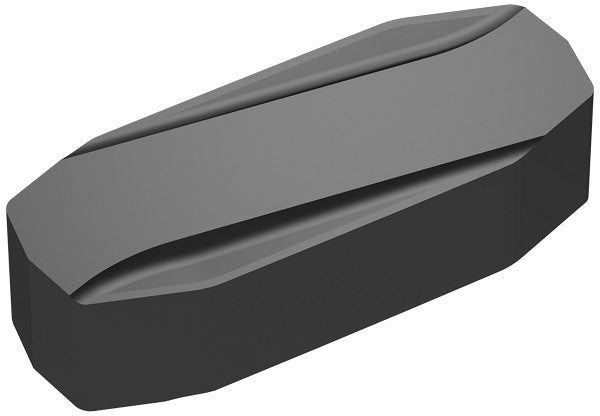

| Name | Ceratizit YNUF 170820S50-M50 CTCP605 7400740201 | |
| EDP # | 0721934 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 37.0 g |

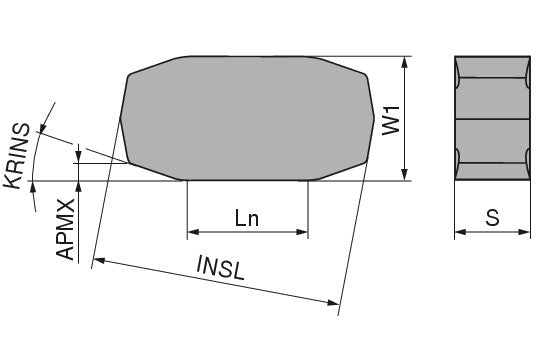

| Length of the secondary cutting edge | 0.6693" | 17.000 mm |
| Depth of cut maximum / APMX | 0.0591" | 1.500 mm |
| Cutting edge angle major / KRINS | 20 ° | |
| Insert thickness / S | 0.3150" | 8.000 mm |
| Insert length / INSL | 1.2205" | 31.000 mm |
| Insert width / W1 | 0.4724" | 12.000 mm |
| Insert index count / NOI | 4 | |
| support chamfer angle / GB | 5 ° | |
| Face land size code / FLSC | S50 | |
| Chip breaker (Ceratizit) / CBMD | -M50 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP605 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
