Description
Ceratizit Article Number: 5078806306
Ceratizit Material Number: 12405676
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

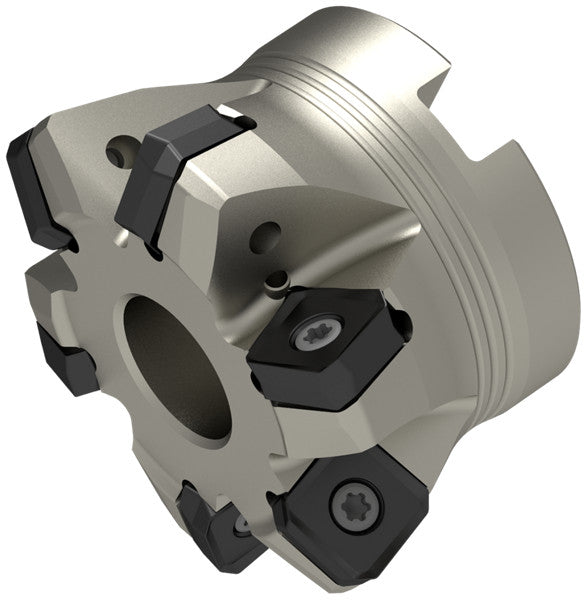

| Name | Ceratizit A271.63.R.06-12-HFC CoreLine Face Mills 271-12 5078806306 | |
| EDP # | 0721954 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 15.0 oz | 439 g |
| Product-Carbon-Footprint | B | |

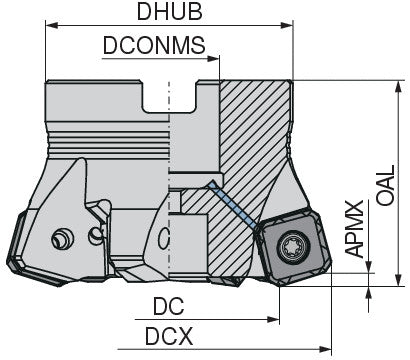

| Cutting diameter maximum / DCX | 2.4803" | 63.000 mm |
| Depth of cut maximum / APMX | 0.1024" | 2.600 mm |
| Face mounted insert count / ZNF | 6.0000" | 152.400 mm |
| Cutting diameter / DC | 1.6929" | 43.000 mm |
| Overall length / OAL | 1.5748" | 40.000 mm |
| Hub diameter / DHUB | 1.8898" | 48.000 mm |
| Mounting spigot diameter / DCONMS H6 | 0.8661" | 22.000 mm |
| Rotational speed maximum / RPMX | 12500 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | SOHU 1204.. | |
| Minimum Extension (DIN 6535 HA) | -0.5906" - -0.5118" | -15.000 - -13.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
