Description
Ceratizit Article Number: 7461101400
Ceratizit Material Number: 12429581
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

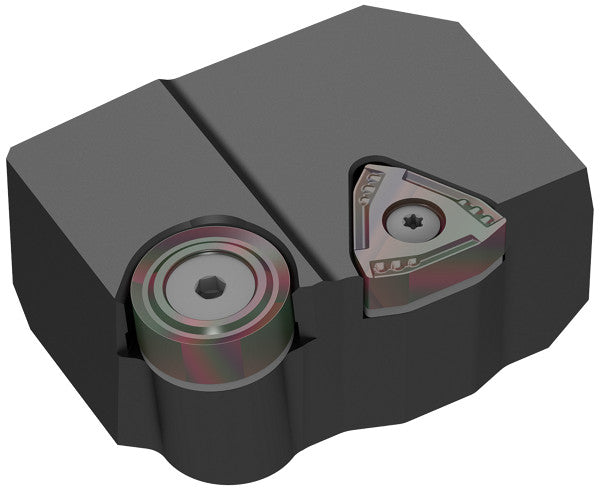

| Name | Ceratizit TCAXX-RN28NN15 MaxiTurn Tandem Cartridge TCA..-RN../NN.. 7461101400 | |
| EDP # | 0721970 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 56.0 oz | 1598 g |
| Product-Carbon-Footprint | A | |
| Designation | TCAXX-RN28NN15 | |

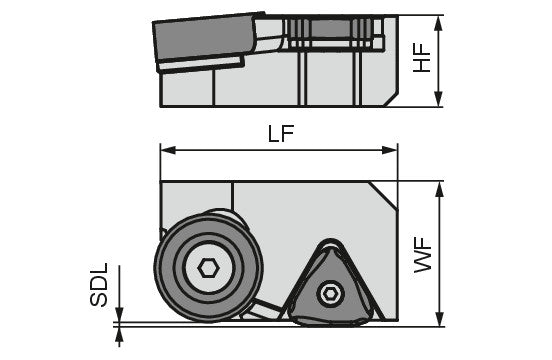

| Functional length / LF | 3.5433" | 90.000 mm |
| Functional height / HF | 1.5748" | 40.000 mm |
| Functional width / WF | 2.5591" | 65.000 mm |
| Step diameter length / SDL | 0.0394" | 1.000 mm |
| Insert | RNMH 2810.. / NNUX 150820 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
