Description
Ceratizit Article Number: 5078603203
Ceratizit Material Number: 12532863
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

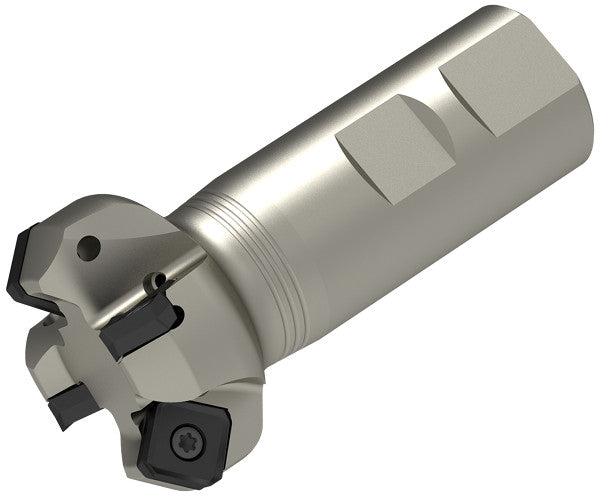

| Name | Ceratizit C271.32.R.03-12-B-40 CoreLine 271-12 End Milling Cutter 5078603203 | |
| EDP # | 0722058 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) Steel (Blue) HiTemp Alloy (Orange) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 23.0 oz | 640 g |
| Product-Carbon-Footprint | B | |
| Machining process - Main Application | Slot milling (45°) | |

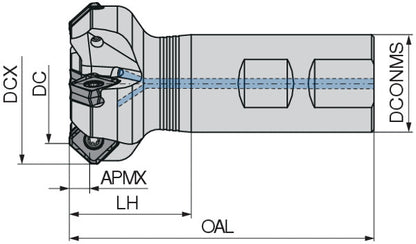

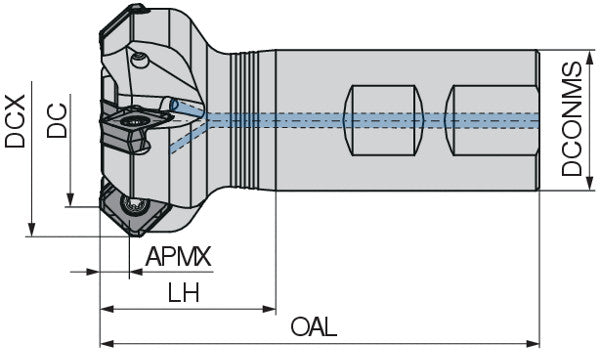

| Cutting diameter maximum / DCX | 1.7717" | 45.000 mm |
| Cutting diameter / DC | 1.2598" | 32.000 mm |
| Face mounted insert count / ZNF | 3.0000" | 76.200 mm |
| Protruding length / LPR | 1.5748" | 40.000 mm |
| Depth of cut maximum / APMX | 0.2677" | 6.800 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Head length / LH | 1.5748" | 40.000 mm |
| Neck diameter (BD) / BD | 1.6929" | 43.000 mm |
| Mounting spigot diameter / DCONMS h6 | 1.2598" | 32.000 mm |
| Rotational speed maximum / RPMX | 18400 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | SOHU 1204.. / XOHU 1204.. | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
