Description
Ceratizit Article Number: 7459654500
Ceratizit Material Number: 12545273
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit OC50R-X32-4S-R45F OvalFlex 45° Reinforced Tool Head For Radial Clamping 7459654500 | |
| EDP # | 0722083 | |
| Workpiece Material(s) | Aluminum (Green) Cast Iron (Red) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.0004 oz | 0.0 g |

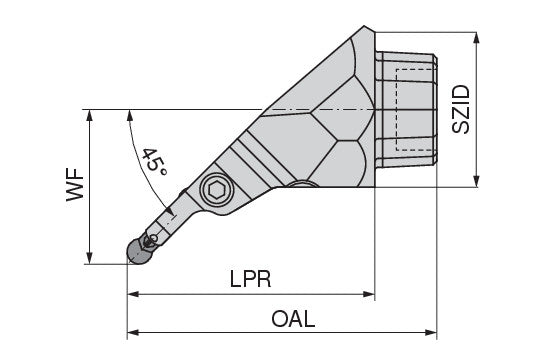

| Protruding length / LPR | 2.7559" | 70.000 mm |
| Functional width / WF | 1.9685" | 50.000 mm |
| Insert | X32.. R4.. | |
| Designation | OC50R X32 4S R 45F | |
| nominal size / SZID | 50 | |
| Machine interface size | OC50R | |
| Version | Right-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
