Description
Ceratizit Article Number: 5867506202
Ceratizit Material Number: 12566668
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

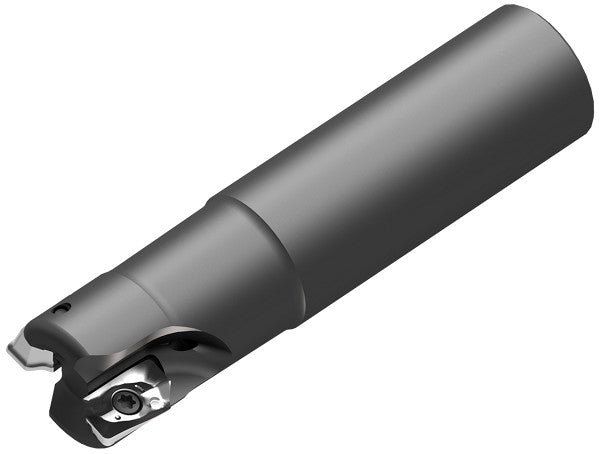

| Name | Ceratizit CHSC.0625.R.02-11-A-100-EF CoreLine End Milling Cutter 90° HSC-11 5867506202 | |
| EDP # | 0722109 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 110 g |
| Productsystem | HSC-11 | |
| Machining process - Main Application | Helical plunging | |
| Cutting diameter / DC | 0.6250" | 15.880 mm |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
| Depth of cut maximum / APMX | 0.3930" | 9.980 mm |
| Overall length / OAL | 3.0000" | 76.200 mm |
| Head length / LH | 1.0000" | 25.400 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6250" | 15.880 mm |
| torque moment | 1.8 Nm | |
| Insert | XDHT 11T3.. | |
| Minimum Extension (DIN 6535 HA) | 1.0315" - 1.1102" | 26.200 - 28.200 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
