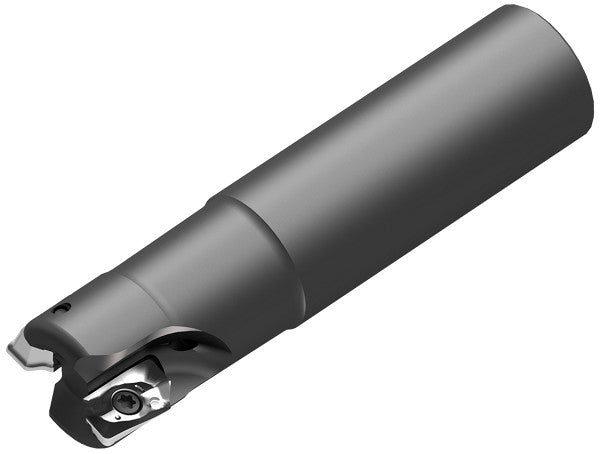

Ceratizit CHSC.0750.R.02-11-A-150-EF CoreLine End Mills HSC-11 5867507502 (0722111) [SKU:5867507502]

Ceratizit CHSC.0750.R.02-11-A-150-EF CoreLine End Mills HSC-11 5867507502 (0722111) [SKU:5867507502]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 5867507502

Ceratizit Material Number: 12566671

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit CHSC.0750.R.02-11-A-150-EF CoreLine End Mills HSC-11 5867507502
EDP # 0722111
Workpiece Material(s) Cast Iron (Red) Aluminum (Green) Composites (Black) All Materials (White)
Weight (1 pc.) 7.0 oz 185 g
Product System HSC-11
Machining process - Main Application Helical plunging
Cutting diameter / DC 0.7500" 19.050 mm
Face mounted insert count / ZNF 2
Depth of cut maximum / APMX 0.3930" 9.980 mm
Overall length / OAL 3.6000" 91.440 mm
Head length / LH 1.5000" 38.100 mm
Mounting spigot diameter / DCONMS h6 0.7500" 19.050 mm
torque moment 1.8 Nm
Insert XDHT 11T3..


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
