Description
Ceratizit Article Number: 5078704004
Ceratizit Material Number: 12590057
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

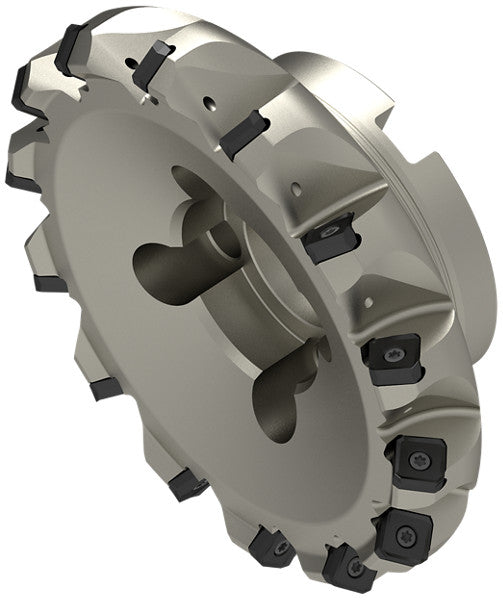

| Name | Ceratizit A271.40.R.04-12 CoreLine Face Mills 271-12 5078704004 | |
| EDP # | 0722257 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 12.0 oz | 328 g |
| Cutting diameter maximum / DCX | 2.0866" | 53.000 mm |
| Depth of cut maximum / APMX | 0.2677" | 6.800 mm |
| Face mounted insert count / ZNF | 4.0000" | 101.600 mm |
| Cutting diameter / DC | 1.5748" | 40.000 mm |
| Overall length / OAL | 1.5748" | 40.000 mm |
| Hub diameter / DHUB | 1.4961" | 38.000 mm |
| Mounting spigot diameter / DCONMS H6 | 0.6299" | 16.000 mm |
| Rotational speed maximum / RPMX | 17900 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | SOHU 1204.. / XOHU 1204.. | |
| Tool cutting edge angle / KAPR | 47 ° | |
| Product-Carbon-Footprint | B | |
| Productsystem | 271-12 | |
| Machining process - Main Application | Chamfer milling Chamfer/Angle milling | |
| Minimum Extension (DIN 6535 HA) | -0.3937" - -0.3150" | -10.000 - -8.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
