Ceratizit A211.63.R.03KN4-15 CoreLine Shell End Face Mill 211-15KN 5078106334 (0722286) [SKU:5078106334]

Ceratizit A211.63.R.03KN4-15 CoreLine Shell End Face Mill 211-15KN 5078106334 (0722286) [SKU:5078106334]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 5078106334

Ceratizit Material Number: 12592101

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

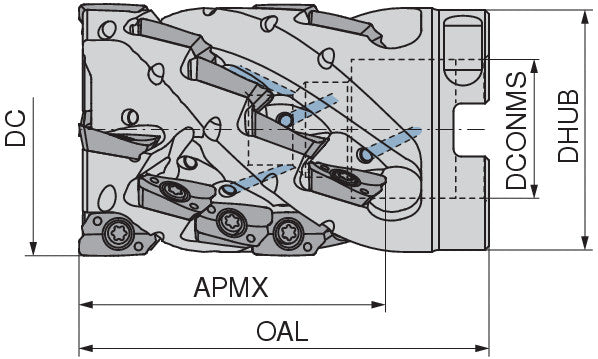

Properties
Name Ceratizit A211.63.R.03KN4-15 CoreLine Shell End Face Mill 211-15KN 5078106334
EDP # 0722286
Workpiece Material(s) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White)
Weight (1 pc.) 33.0 oz 940 g
Product-Carbon-Footprint B
Product System 211-15KN
Machining process - Main Application Axial plunging
Depth of cut maximum / APMX 2.0709" 52.600 mm
Face mounted insert count / ZNF 3
Cutting diameter / DC 2.4803" 63.000 mm
Peripheral effective cutting edge count / ZEFP 12
Peripheral mounted insert count / ZNP 4.0000" 101.600 mm
Overall length / OAL 2.9921" 76.000 mm
Hub diameter / DHUB 2.2835" 58.000 mm
Mounting spigot diameter / DCONMS H6 1.0630" 27.000 mm
Rotational speed maximum / RPMX 12500 1/min.
torque moment 3.2 Nm
Insert XD.T 1505
Tool cutting edge angle / KAPR 90 °


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
