Ceratizit A211.50.R.04KN5-15 CoreLine Shell End Face Mill 211-15KN 5078105045 (0722302) [SKU:5078105045]

Ceratizit A211.50.R.04KN5-15 CoreLine Shell End Face Mill 211-15KN 5078105045 (0722302) [SKU:5078105045]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 5078105045

Ceratizit Material Number: 12598411

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit A211.50.R.04KN5-15 CoreLine Shell End Face Mill 211-15KN 5078105045
EDP # 0722302
Workpiece Material(s) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White)
Weight (1 pc.) 26.0 oz 725 g
Product-Carbon-Footprint B
Product System 211-15KN
Machining process - Main Application Axial plunging

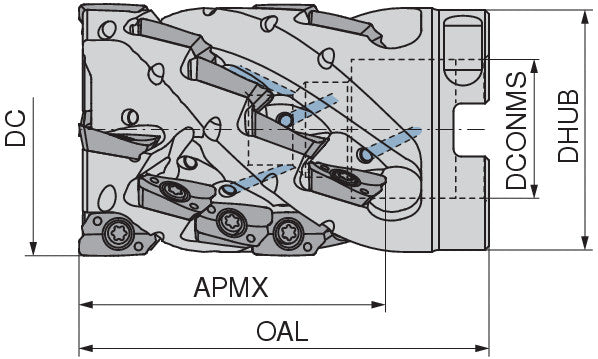

Depth of cut maximum / APMX 2.5906" 65.800 mm
Face mounted insert count / ZNF 4
Cutting diameter / DC 1.9685" 50.000 mm
Peripheral effective cutting edge count / ZEFP 20
Peripheral mounted insert count / ZNP 5.0000" 127.000 mm
Overall length / OAL 3.9370" 100.000 mm
Hub diameter / DHUB 1.8898" 48.000 mm
Mounting spigot diameter / DCONMS H6 1.0630" 27.000 mm
Rotational speed maximum / RPMX 13600 1/min.
torque moment 3.2 Nm
Insert XD.T 1505
Tool cutting edge angle / KAPR 90 °


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
