Description
Note that this item has been discontinued and will not be re-stocked.
DIN69871-ADB50-OZ4-32-73.F COLLET CHUCK Clamping nut with ball bearings also available with Balluff chip on request Scope of supply: Holder with lock nut and adjustable back stop
Mat No: 12603524, Article No: 8241134000
This product comes in packages of 1
The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

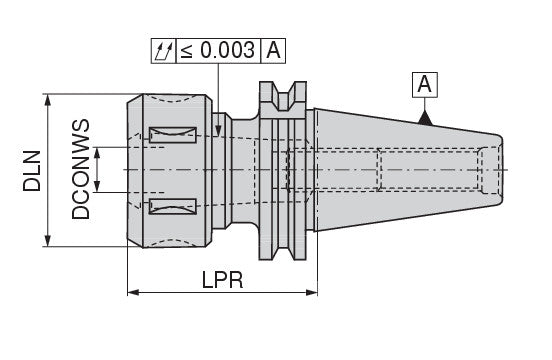

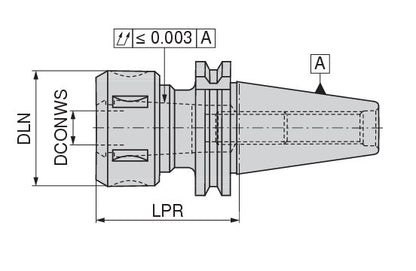

| Properties | ||
|---|---|---|
| Name | Ceratizit DIN69871-ADB50-OZ4-32-73.F COLLET CHUCK 12603524 (0722340) | |
| EDP # | 0722340 | |
| Weight | 121.6 oz | 3446.2 g |
| Machine interface size | SK 50 | |
| Clamping Ø. nominal. workpc. side - range DCONWS | 4 - 32 mm | |
| Protruding length LPR | 2.7559 inch | 70 mm |
| Diameter Lock Nut DLN | 2.8346 inch | 72 mm |
| Neck diameter (BD) BD | 2.3622 inch | 60 mm |
| Torque maximum TQX | 120 Nm | |
| Designation | DIN69871-ADB50-OZ4-32-73.F | |
| Balance quality | G 2.5 n<sub>max</sub> 18000 | |
