Description
Ceratizit Article Number: 8243924000
Ceratizit Material Number: 12616114
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 8274624079, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

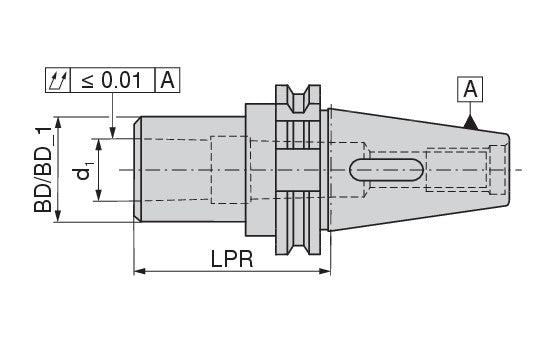

| Properties | ||
|---|---|---|
| Name | Ceratizit DIN69871.AD40.KH.MK4.156.V Taper Sleeve DIN6383 For 228-2D Morse Taper Shanks 8243924000 | |
| EDP # | 0722414 | |
| Weight (1 pc.) | 74.0 oz | 2105 g |
| Machine interface size | SK 40 | |
| Cone clamping size | MK4 | |
| Clamping diameter (DCONWS) / DCONWS | 1.2310" | 31.267 mm |
| Protruding length / LPR | 6.1417" | 156.000 mm |
| Neck diameter (BD) / BD | 1.8898" | 48.000 mm |
| Overall length / OAL | 8.8346" | 224.400 mm |
| Clamping length machine side / LSC | 3.6220" | 92.000 mm |
| Balance quality | G 6,3 nmax 8000 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
