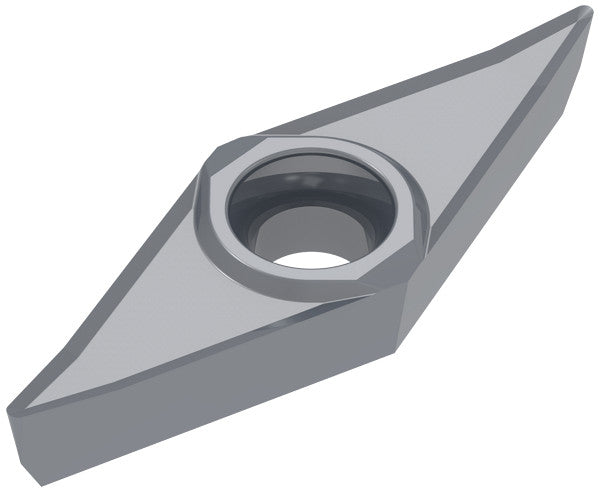

Ceratizit VCGT 160404FN-27 CTPX715 CoreLine Carbide Turning indexable Insert 7028082800 (0722452)
Ceratizit VCGT 160404FN-27 CTPX715 CoreLine Carbide Turning indexable Insert 7028082800 (0722452)
Couldn't load pickup availability
Ceratizit Article Number: 7028082800
Ceratizit Material Number: 12622048
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VCGT 160404FN-27 CTPX715 CoreLine Carbide Turning indexable Insert 7028082800 | |
| EDP # | 0722452 | |
| Weight (1 pc.) | 0.3 oz | 7.5 g |
| Product-Carbon-Footprint | C | |
| designation | 160404FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.6535" | 16.600 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| 331FN | ||
| Size | 16.0000" | 406.400 mm |
| Designation | VCGT 160404FN | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | -27 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
