Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 7642933200
Ceratizit Material Number: 12629153
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

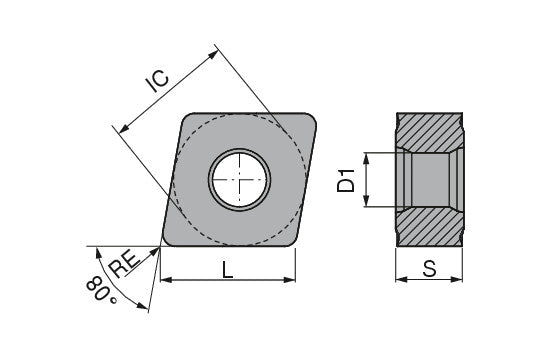

| Properties | ||
|---|---|---|

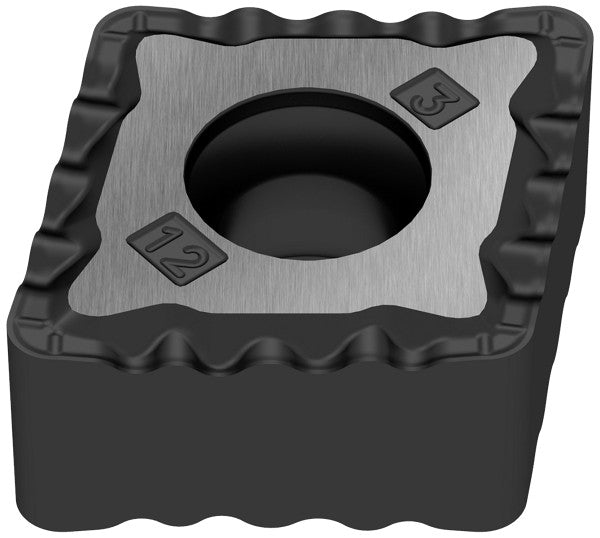

| Name | Ceratizit CNMU 120612EN-XU CTCP115 7642933200 | |
| EDP # | 0722465 | |
| Weight (1 pc.) | 0.5 oz | 13.0 g |
| designation | 120612EN | |
| Corner radius / RE | 0.0472' | 1.200 mm |
| Cutting edge length / L | 0.5079' | 12.900 mm |
| Insert thickness / S | 0.2500' | 6.350 mm |
| Fixing hole diameter / D1 | 0.2031' | 5.160 mm |
| Inscribed circle diameter / IC | 0.5000' | 12.700 mm |
| Chip breaker (Ceratizit) / CBMD | -XU | |
| Coating name / Grade (Ceratizit) / COATN | CTCP115 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
