Description
Ceratizit Article Number: 5876215004
Ceratizit Material Number: 12629572
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

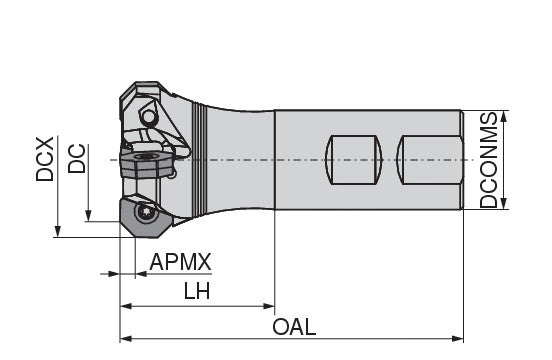

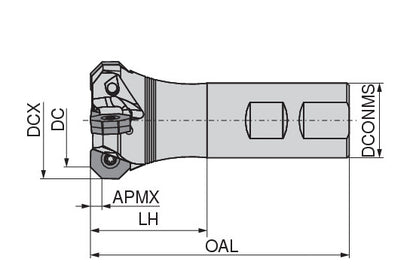

| Name | Ceratizit C273.150.R.04-06-B125-125-EF CoreLine End Mills 273-06 5876215004 | |
| EDP # | 0722487 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 20.0 oz | 564 g |
| Productsystem | 273-06 | |
| Machining process - Main Application | Face milling | |
| Cutting diameter maximum / DCX | 1.9110" | 48.540 mm |
| Cutting diameter / DC | 1.5000" | 38.100 mm |
| Face mounted insert count / ZNF | 4.0000" | 101.600 mm |
| Depth of cut maximum / APMX | 0.1380" | 3.510 mm |
| Overall length / OAL | 3.6000" | 91.440 mm |
| Head length / LH | 1.2500" | 31.750 mm |
| Mounting spigot diameter / DCONMS h6 | 1.2500" | 31.750 mm |
| torque moment | 5 Nm | |
| Insert | OAKU / XAHT 0605 | |
| Minimum Extension (DIN 6535 HA) | 1.1591" - 1.2378" | 29.440 - 31.440 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
