Description
Ceratizit Article Number: 5876220005
Ceratizit Material Number: 12629574
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

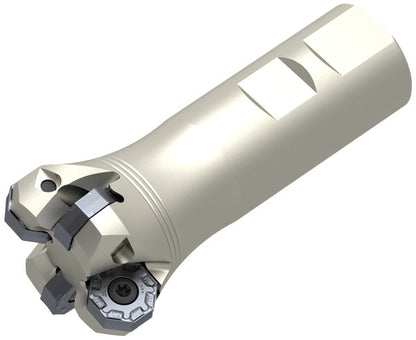

| Name | Ceratizit C273.200.R.05-06-B150-125-EF CoreLine End Mills 273-06 5876220005 | |
| EDP # | 0722488 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) HiTemp Alloy (Orange) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 34.0 oz | 972 g |
| Productsystem | 273-06 | |
| Machining process - Main Application | Face milling | |
| Cutting diameter maximum / DCX | 2.4210" | 61.490 mm |
| Cutting diameter / DC | 2.0000" | 50.800 mm |
| Face mounted insert count / ZNF | 5.0000" | 127.000 mm |
| Depth of cut maximum / APMX | 0.1380" | 3.510 mm |
| Overall length / OAL | 4.5000" | 114.300 mm |
| Head length / LH | 1.2500" | 31.750 mm |
| Mounting spigot diameter / DCONMS h6 | 1.5000" | 38.100 mm |
| torque moment | 5 Nm | |
| Insert | OAKU / XAHT 0605 | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
