Description
Ceratizit Article Number: 5868162504
Ceratizit Material Number: 12642773
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CHFC.125.R.04-09-B100-250-EF CoreLine End Mills 5868162504 | |
| EDP # | 0722512 | |
| Workpiece Material(s) | Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) Steel (Blue) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 16.0 oz | 455 g |
| Productsystem | HFC | |
| Machining process - Main Application | Helical plunging | |

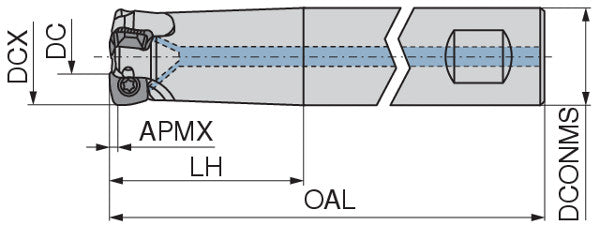

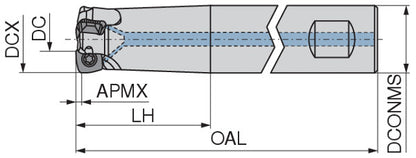

| Cutting diameter maximum / DCX | 1.2500" | 31.750 mm |
| Cutting diameter / DC | 0.7850" | 19.940 mm |
| Face mounted insert count / ZNF | 4.0000" | 101.600 mm |
| Protruding length / LPR | 2.5952" | 65.920 mm |
| Depth of cut maximum / APMX | 0.0390" | 0.990 mm |
| Neck Diameter / DN | 1.1071" | 28.120 mm |
| Overall length / OAL | 4.8000" | 121.920 mm |
| Head length / LH | 2.5000" | 63.500 mm |
| Neck diameter (BD) / BD | 1.2205" | 31.000 mm |
| Mounting spigot diameter / DCONMS h6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 10700 1/min. | |
| Insert | XDLX 09T3.. | |
| torque moment | 3.2 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
