Description
Ceratizit Article Number: 5876760011
Ceratizit Material Number: 14417535
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

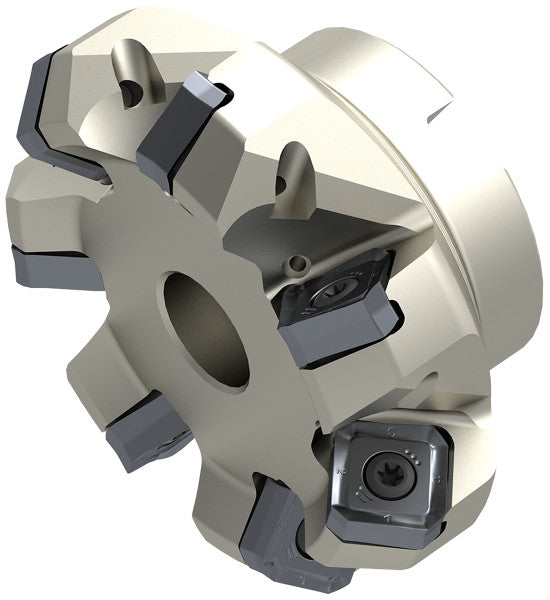

| Name | Ceratizit A271.600.R.11-17-B200-250-EF CoreLine Face Mills 271-17 5876760011 | |
| EDP # | 0722525 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) Steel (Blue) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 148.0 oz | 4204 g |
| Productsystem | 271-17 | |
| Machining process - Main Application | Chamfer milling Chamfer/Angle milling | |

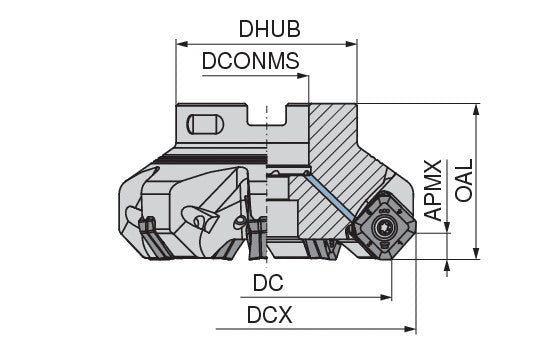

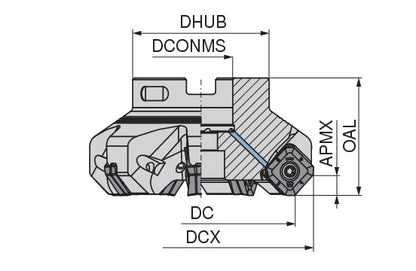

| Cutting diameter maximum / DCX | 6.6600" | 169.160 mm |
| Depth of cut maximum / APMX | 0.3340" | 8.480 mm |
| Face mounted insert count / ZNF | 11.0000" | 279.400 mm |
| Cutting diameter / DC | 6.0000" | 152.400 mm |
| Overall length / OAL | 2.5000" | 63.500 mm |
| Hub diameter / DHUB | 3.7500" | 95.250 mm |
| Mounting spigot diameter / DCONMS | 2.0000" | 50.800 mm |
| Rotational speed maximum / RPMX | 8100 1/min. | |
| torque moment | 5 Nm | |
| Insert | SAKU 1706 | |
| Tool cutting edge angle / KAPR | 47 ° | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
