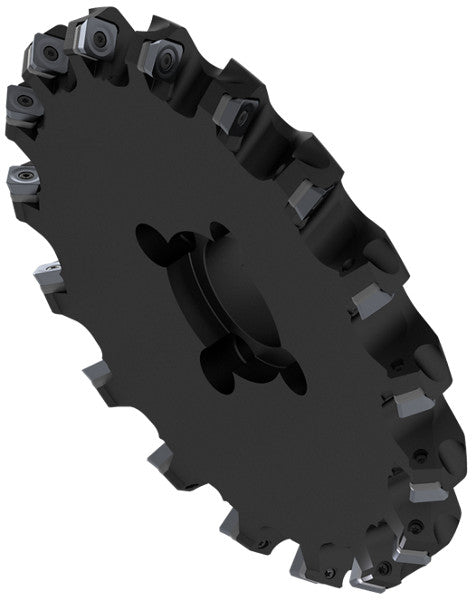

Ceratizit A270.1200.L.17-19-C250-250-EF CoreLine Shell Mill 45° 270-19 5869862017 (0722530) [SKU:5869862017]

Ceratizit A270.1200.L.17-19-C250-250-EF CoreLine Shell Mill 45° 270-19 5869862017 (0722530) [SKU:5869862017]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 5869862017

Ceratizit Material Number: 14417811

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit A270.1200.L.17-19-C250-250-EF CoreLine Shell Mill 45° 270-19 5869862017
EDP # 0722530
Workpiece Material(s) Cast Iron (Red) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Stainless Steel (Yellow) All Materials (White)
Weight (1 pc.) 106.0 oz 3006 g
Cutting diameter maximum / DCX 12.0000" 304.800 mm
Depth of cut maximum / APMX 0.3940" 10.010 mm
Face mounted insert count / ZNF 17
Cutting diameter / DC 12.8400" 326.140 mm
Overall length / OAL 2.4800" 62.990 mm
Hub diameter / DHUB 5.1200" 130.050 mm
Mounting spigot diameter / DCONMS H6 2.5000" 63.500 mm
Insert SD.. 1907..
Tool cutting edge angle / KAPR 45 °
Product System 270-19
Machining process - Main Application Chamfer milling Chamfer/Angle milling


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
