Description
Ceratizit Article Number: 7408030600
Ceratizit Material Number: 14421463
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

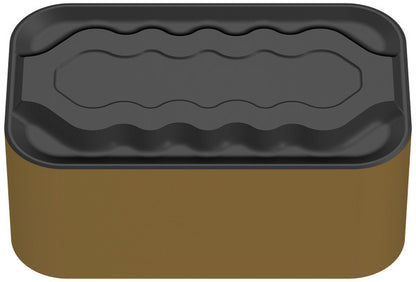

| Name | Ceratizit LNMR 311248SN-R75 CTC10RW1 MaxiTurn Carbide Turning indexable Insert 7408030600 | |
| EDP # | 0722642 | |
| Weight (1 pc.) | 4.0 oz | 108 g |
| Product-Carbon-Footprint | C | |
| designation | 311248SN | |
| Corner radius / RE | 0.1890" | 4.800 mm |
| Cutting edge length / L | 1.2520" | 31.800 mm |
| Insert thickness / S | 0.5000" | 12.700 mm |
| Fixing hole diameter / D1 | 0.3110" | 7.900 mm |
| Inscribed circle diameter / IC | 0.7500" | 19.050 mm |
| 311248SN | ||
| Size | 31.0000" | 787.400 mm |
| Designation | LNMR 311248SN | |
| Chip breaker (Ceratizit) / CBMD | -R75 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
