Description
Ceratizit Article Number: 5907525050
Ceratizit Material Number: 14432857
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

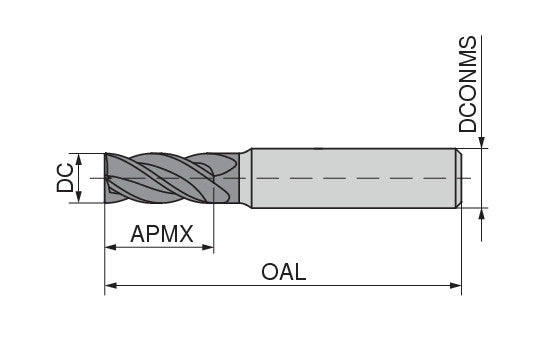

| Name | Ceratizit 3DX645-02500.12500.R05.Z00000.HA.X104 CoreLine End Mill UN 5907525050 | |
| EDP # | 0724196 | |
| Weight (1 pc.) | 2.0 oz | 46.6 g |
| Machining process - Main Application | Angled ramping | |
| Cutting diameter / DC +0.000/-0.002 mm | 0.2500" | 6.350 mm |
| Depth of cut maximum / APMX | 1.2500" | 31.750 mm |
| Protruding length / LPR | 2.5827" | 65.600 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Mounting spigot diameter / DCONMS -0.0001 / -0.0004 | 0.2500" | 6.350 mm |
| Peripheral effective cutting edge count / ZEFP | 5.0000" | 127.000 mm |
| Coating name / Grade (Ceratizit) / COATN | AlTiN | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
