Description
Ceratizit Article Number: 7611434601
Ceratizit Material Number: 14462763
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

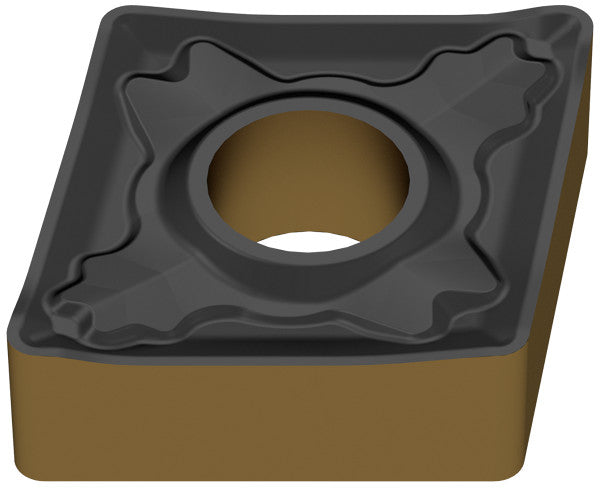

| Name | Ceratizit CNMM 160616EN-R28 CTCP115-P CoreLine Carbide Turning indexable Insert 7611434601 | |
| EDP # | 0724569 | |
| Weight (1 pc.) | 1.0 oz | 21.4 g |
| Product-Carbon-Footprint | C | |
| designation | 160616EN | |
| Corner radius / RE | 0.0630" | 1.600 mm |
| Cutting edge length / L | 0.6339" | 16.100 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Fixing hole diameter / D1 | 0.2500" | 6.350 mm |
| Inscribed circle diameter / IC | 0.6248" | 15.870 mm |
| 544EN | ||
| Size | 16.0000" | 406.400 mm |
| Designation | cn 160616en | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | -R28 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
