Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 7071311600
Ceratizit Material Number: 14516763
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7064711600, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SRGCL 1616 H08 MaxiLock-S - - Toolholder With Screw Clamping 7071311600 | |
| EDP # | 0724884 | |
| Weight (1 pc.) | 7.0 oz | 202 g |

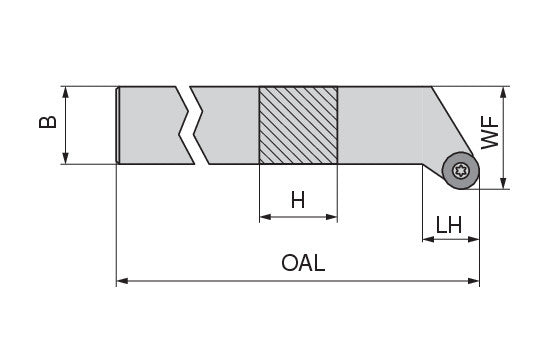

| Shank height / H | 0.6299' | 16.000 mm |
| Shank width / B | 0.6299' | 16.000 mm |
| Overall length / OAL | 3.9370' | 100.000 mm |
| Head length / LH | 0.4331' | 11.000 mm |
| Functional width / WF | 0.7874' | 20.000 mm |
| Insert | RC.. 0803 M0 | |
| torque moment | 1.8 Nm | |
| Version | Left-hand | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
