Description
Ceratizit Article Number: 7084542001
Ceratizit Material Number: 14519899
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit E20L0021S4-2020K-S-GX24 CoreLine Radial Monoholder 7084542001 | |
| EDP # | 0724895 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 13.0 oz | 367 g |
| Product-Carbon-Footprint | B | |

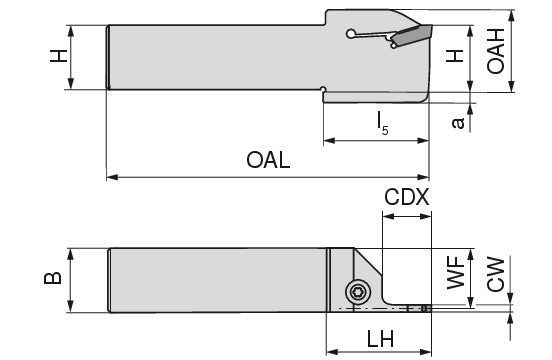

| Shank height / H | 0.7874" | 20.000 mm |
| Shank width / B | 0.7874" | 20.000 mm |
| Cutting width / CW | 0.1575" | 4.000 mm |
| Functional width / WF | 0.7205" | 18.300 mm |
| Overall length / OAL | 4.9213" | 125.000 mm |
| Head length / LH | 1.5748" | 40.000 mm |
| Overall height / OAH | 1.0236" | 26.000 mm |
| Cutting depth maximum / CDX | 0.8268" | 21.000 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
