Description
Ceratizit Article Number: 7461100200
Ceratizit Material Number: 14547290
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

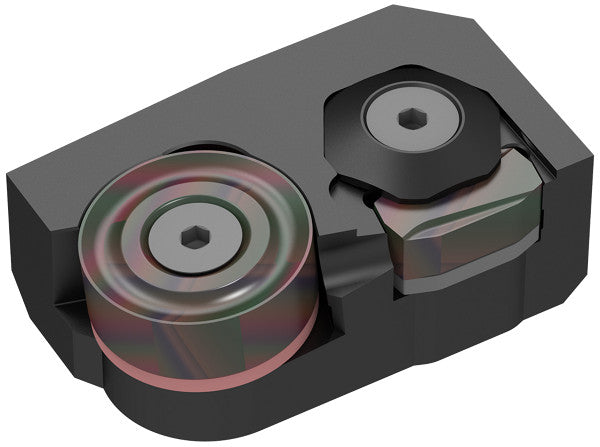

| Name | Ceratizit TCAXX-RN20YN20 MaxiTurn Tandem Cartridge TCA..-RN../YN.. 7461100200 | |
| EDP # | 0725013 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 12.0 oz | 337 g |
| Product-Carbon-Footprint | A | |
| Designation | TCAXX-RN20YN20 | |

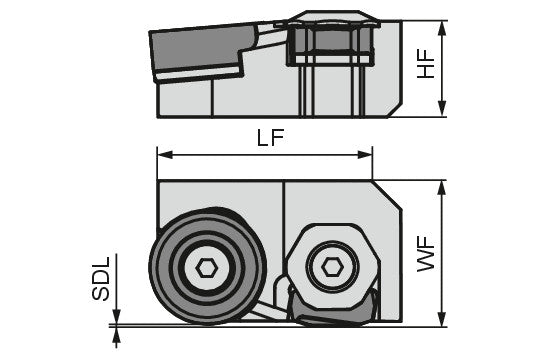

| Functional length / LF | 2.5197" | 64.000 mm |
| Functional height / HF | 0.8661" | 22.000 mm |
| Functional width / WF | 1.5354" | 39.000 mm |
| Step diameter length / SDL | 0.0394" | 1.000 mm |
| Insert | RNMH 2008.. / YNUF 201220 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
