Description
Ceratizit Article Number: 7461110200
Ceratizit Material Number: 14566951
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

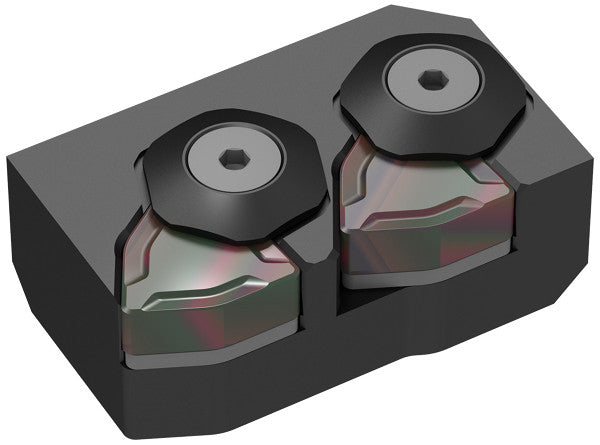

| Name | Ceratizit TCA12-WNEF16WNEF16 MaxiTurn Tandem Cartridge TCA..-WNEF/WNEF 7461110200 | |
| EDP # | 0725203 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 0.0004 oz | 0.0 g |
| Product-Carbon-Footprint | A | |
| Designation | TCA12-WNEF16WNEF16 | |
| Functional length / LF | 4.3307" | 110.000 mm |
| Functional height / HF | 1.5748" | 40.000 mm |
| Functional width / WF | 2.5591" | 65.000 mm |
| Step diameter length / SDL | 0.0984" | 2.500 mm |
| Insert | WNEF 161325 / WNEF 161325 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
