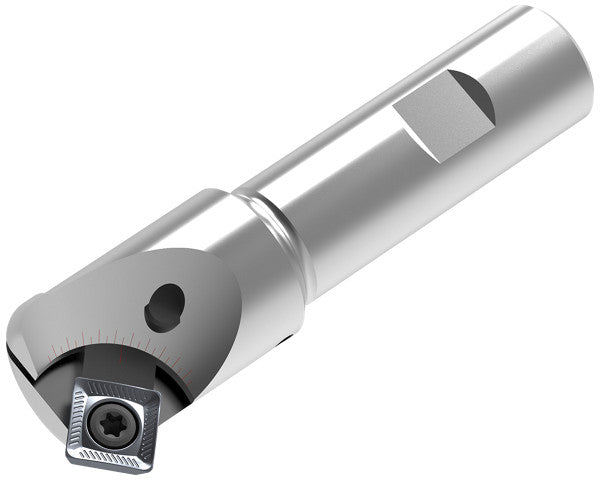

Ceratizit C490.26.R.01-12-B20-AC CoreLine Adjustable Angle Milling Cutter 490-12 5069002000 (0725211) [SKU:5069002000]

Ceratizit C490.26.R.01-12-B20-AC CoreLine Adjustable Angle Milling Cutter 490-12 5069002000 (0725211) [SKU:5069002000]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 5069002000

Ceratizit Material Number: 14569015

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit C490.26.R.01-12-B20-AC CoreLine Adjustable Angle Milling Cutter 490-12 5069002000
EDP # 0725211
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White)
Weight (1 pc.) 9.0 oz 250 g
Product-Carbon-Footprint B
Product System 490-12
Machining process - Main Application Chamfer milling Chamfer/Angle milling
Face mounted insert count / ZNF 1

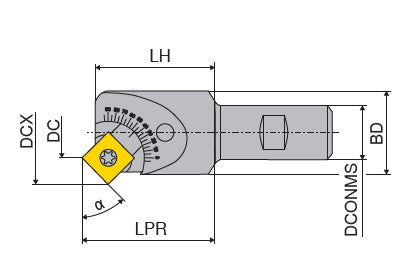

Head length / LH 1.4567" 37.000 mm
Neck diameter (BD) / BD 0.9843" 25.000 mm
Mounting spigot diameter / DCONMS 0.7874" 20.000 mm
Insert SD.. 1205..
Protruding length - range / LPR 38.2 - 40.6
Cutting edge Ø max. - range / DCX 26.6 - 31.5
Cutting edge Ø - range / DC 1.1 - 14.1
torque moment 5 Nm


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
