Description
Ceratizit Article Number: 7146120002
Ceratizit Material Number: 14577304
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

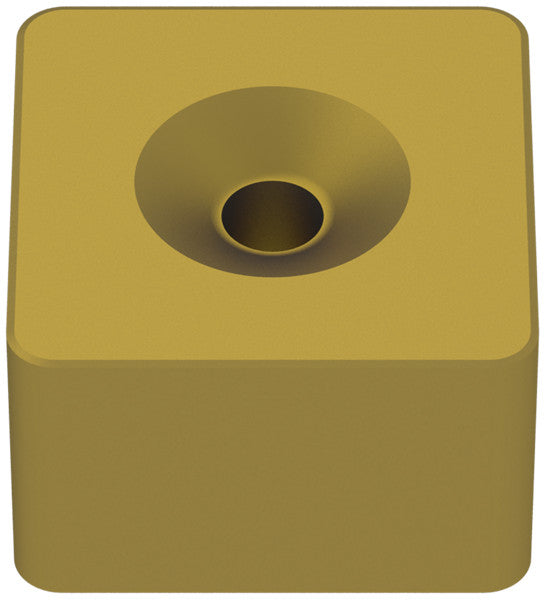

| Name | Ceratizit SNGX 120712TN-020D-C CTM3105 CoreLine CERAMIC Turning indexable Insert SNGX-C 7146120002 | |
| EDP # | 0725288 | |
| Weight (1 pc.) | 0.1 oz | 3.9 g |
| designation | 120712TN | |
| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 453TN | ||
| support chamfer angle / GB | 20 ° | |
| Face land width / BN | 0.0079" | 0.200 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | SNGX 120712 | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTM3105 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
