Description
Ceratizit Article Number: 7612973201
Ceratizit Material Number: 14578820
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

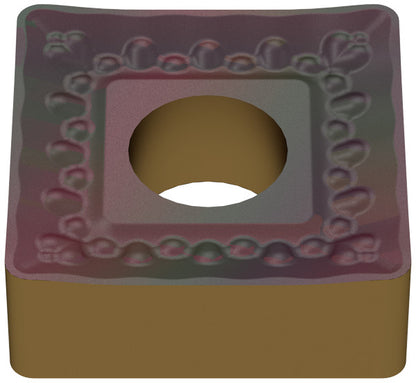

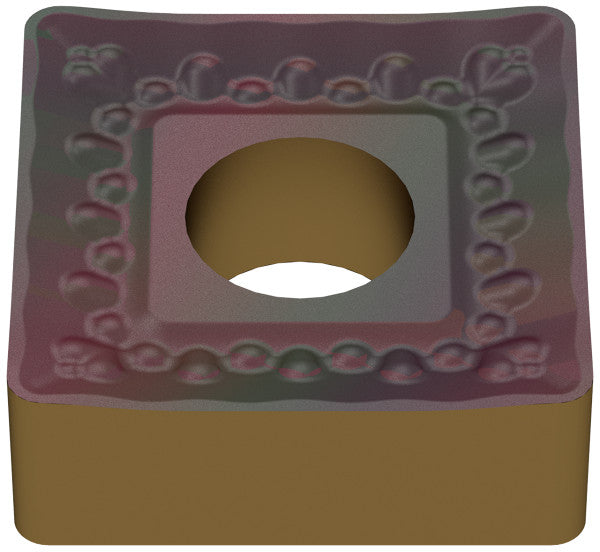

| Name | Ceratizit SNMM 150612EN-R58 CTCP135-P 7612973201 | |
| EDP # | 0725359 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 16.8 g |
| designation | 150612EN | |
| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.6248" | 15.870 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Fixing hole diameter / D1 | 0.2500" | 6.350 mm |
| Inscribed circle diameter / IC | 0.6248" | 15.870 mm |
| Insert index count / NOI | 4 | |
| Chip breaker (Ceratizit) / CBMD | -R58 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP135-P | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
