Description
Ceratizit Article Number: 7611955801
Ceratizit Material Number: 14582930
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

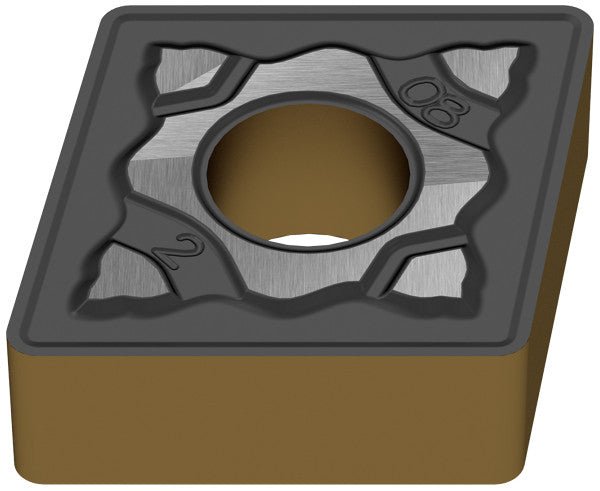

| Name | Ceratizit CNMG 190616EN-M70 CTCP125-P CoreLine Carbide Turning indexable Insert 7611955801 | |
| EDP # | 0725672 | |
| Weight (1 pc.) | 1.0 oz | 27.0 g |
| Product-Carbon-Footprint | D | |
| designation | 190616EN | |
| Corner radius / RE | 0.0630" | 1.600 mm |
| Cutting edge length / L | 0.7598" | 19.300 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Fixing hole diameter / D1 | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.7500" | 19.050 mm |
| 644EN | ||
| Size | 19.0000" | 482.600 mm |
| Designation | CNMG 190616EN | |
| Insert index count / NOI | 4.0000" | 101.600 mm |
| Chip breaker (Ceratizit) / CBMD | -M70 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
