Ceratizit ASLOT.125.R.10.32.DC-SX2 CoreLine Side And Face Milling Cutter Slot-SX 5038612502 (0725845) [SKU:5038612502]

Ceratizit ASLOT.125.R.10.32.DC-SX2 CoreLine Side And Face Milling Cutter Slot-SX 5038612502 (0725845) [SKU:5038612502]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 5038612502

Ceratizit Material Number: 14586808

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit ASLOT.125.R.10.32.DC-SX2 CoreLine Side And Face Milling Cutter Slot-SX 5038612502
EDP # 0725845
Workpiece Material(s) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Stainless Steel (Yellow) All Materials (White)
Weight (1 pc.) 6.0 oz 180 g
Product-Carbon-Footprint B
Product System Slot-SX
Machining process - Main Application Slot milling

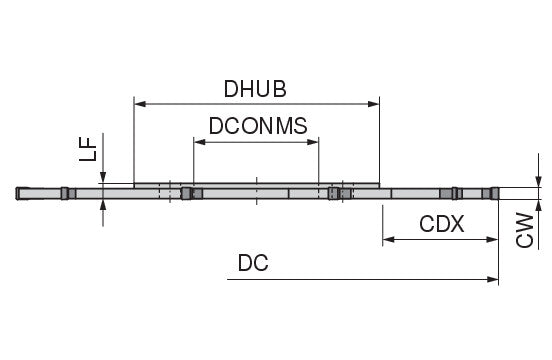

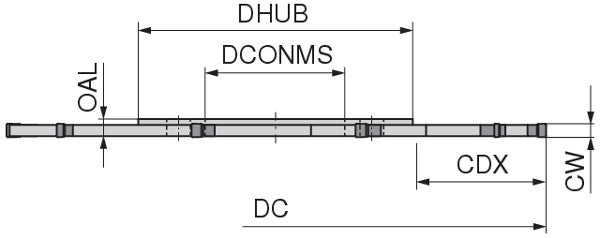

Cutting diameter / DC 4.9213" 125.000 mm
Cutting width / CW 0.0787" 2.000 mm
Cutting depth maximum / CDX 1.1811" 30.000 mm
Mounting spigot diameter / DCONMS H6 1.2598" 32.000 mm
Hub diameter / DHUB 2.4803" 63.000 mm
Overall length / OAL 0.1053" 2.670 mm
Peripheral effective cutting edge count / ZEFP 10
Insert SX E2 ..
Designation ASLOT.125.R.10.32.DC-SX2
Rotational speed maximum / RPMX 4000 1/min.
Machine interface size AD.SLOT.32...


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
