Description
Ceratizit Article Number: 5115504002
Ceratizit Material Number: 14616962
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

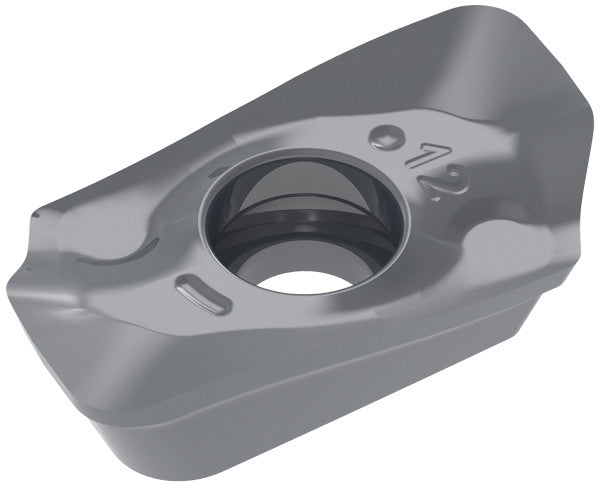

| Name | Ceratizit XDHT 11T340FR-F10 CTPX715 CoreLine Carbide Milling indexable Insert 5115504002 | |
| EDP # | 0725860 | |
| Weight (1 pc.) | 0.1 oz | 2.1 g |
| Product-Carbon-Footprint | C | |
| designation | 11T340FR | |
| Corner radius / RE | 0.1575" | 4.000 mm |
| Inscribed circle diameter / IC | 0.2677" | 6.800 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Cutting edge length / L | 0.4173" | 10.600 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
