Description
Ceratizit Article Number: 5038920006
Ceratizit Material Number: 14627071
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

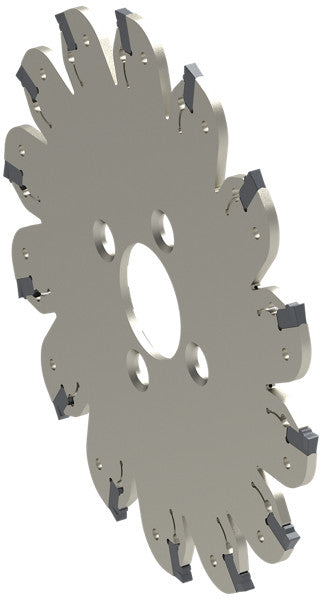

| Name | Ceratizit ASLOT.200.R.14.40.DC-SX6 MaxiMill Slot-SX Slot Milling And Parting Off Cutter 5038920006 | |
| EDP # | 0725894 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 94.0 g |

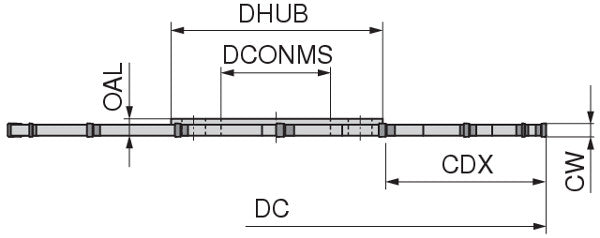

| Cutting diameter / DC | 7.8740" | 200.000 mm |
| Cutting width / CW | 0.2362" | 6.000 mm |
| Cutting depth maximum / CDX | 2.3228" | 59.000 mm |
| Mounting spigot diameter / DCONMS H6 | 1.5748" | 40.000 mm |
| Overall length / OAL | 0.2244" | 5.700 mm |
| Peripheral effective cutting edge count / ZEFP | 14 | |
| Insert | SX E6 .. | |
| Designation | ASLOT.200.R.14.40.DC-SX6 | |
| Rotational speed maximum / RPMX | 2800 1/min. | |
| Machine interface size | AD.SLOT.40...SK | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
