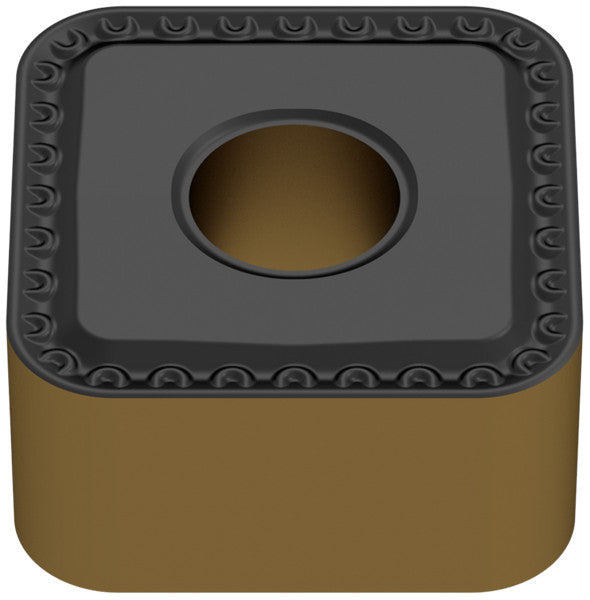

Ceratizit SNMG 211040SN-R71 CTC10RW1 MaxiTurn Carbide Turning indexable Insert 7411534000 (0725956)
Ceratizit SNMG 211040SN-R71 CTC10RW1 MaxiTurn Carbide Turning indexable Insert 7411534000 (0725956)
Couldn't load pickup availability
Ceratizit Article Number: 7411534000
Ceratizit Material Number: 14675712
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SNMG 211040SN-R71 CTC10RW1 MaxiTurn Carbide Turning indexable Insert 7411534000 | |
| EDP # | 0725956 | |
| Weight (1 pc.) | 2.0 oz | 58.9 g |
| Product-Carbon-Footprint | C | |
| designation | 211040SN | |
| Corner radius / RE | 0.1575" | 4.000 mm |
| Cutting edge length / L | 0.8268" | 21.000 mm |
| Insert thickness / S | 0.4134" | 10.500 mm |
| Fixing hole diameter / D1 | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.8268" | 21.000 mm |
| 211040SN | ||
| Size | 21.0000" | 533.400 mm |
| Designation | SNMG 211040SN | |
| Chip breaker (Ceratizit) / CBMD | -R71 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
