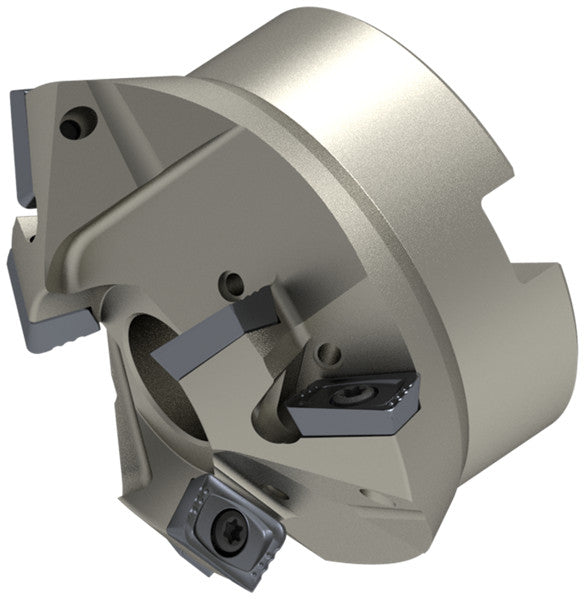

Ceratizit A242.84.R.03-15.30° CoreLine Chamfer Milling Cutter 242-15 5076813003 (0726081) [SKU:5076813003]
Ceratizit A242.84.R.03-15.30° CoreLine Chamfer Milling Cutter 242-15 5076813003 (0726081) [SKU:5076813003]
Couldn't load pickup availability
Ceratizit Article Number: 5076813003
Ceratizit Material Number: 14750401
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A242.84.R.03-15.30° CoreLine Chamfer Milling Cutter 242-15 5076813003 | |
| EDP # | 0726081 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 31.0 oz | 890 g |

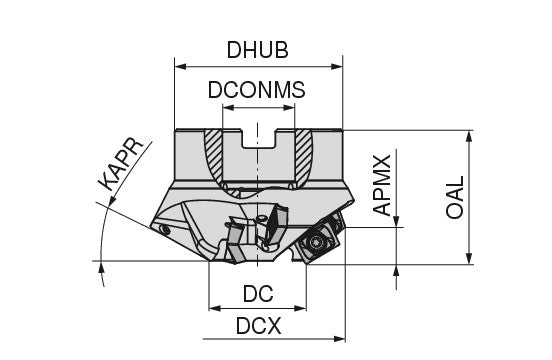

| Cutting diameter maximum / DCX | 3.2913" | 83.600 mm |
| Depth of cut maximum / APMX | 0.5354" | 13.600 mm |
| Face mounted insert count / ZNF | 3 | |
| Cutting diameter / DC | 1.3780" | 35.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| B ±0,3 | 1.0866" | 27.600 mm |
| Peripheral mounted insert count / ZNP | 2.0000" | 50.800 mm |
| Overall length / OAL | 1.9685" | 50.000 mm |
| Hub diameter / DHUB | 2.4606" | 62.500 mm |
| Mounting spigot diameter / DCONMS | 1.0630" | 27.000 mm |
| Insert | LD.. 15... | |
| Tool cutting edge angle / KAPR | 30 ° | |
| torque moment | 3.2 Nm | |
| Product-Carbon-Footprint | B | |
| Product System | 242-15 | |
| Machining process - Main Application | Chamfer milling Chamfer/Angle milling | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
