Description
Ceratizit Article Number: 5076816003
Ceratizit Material Number: 14750402
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

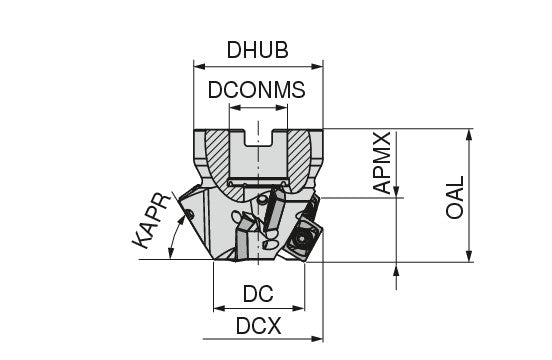

| Properties | ||
|---|---|---|
| Name | Ceratizit A242.63.R.03-15.60° MaxiMill Chamfer Cutter 5076816003 | |
| EDP # | 0726082 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 15.0 oz | 425 g |
| Tool cutting edge angle / KAPR | 60 ° | |
| Cutting diameter / DC | 1.3780" | 35.000 mm |
| Depth of cut maximum / APMX | 0.9291" | 23.600 mm |
| Face mounted insert count / ZNF | 3 | |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| B ±0,3 | 1.0866" | 27.600 mm |
| Peripheral mounted insert count / ZNP | 2 | |
| Overall length / OAL | 1.9685" | 50.000 mm |
| Hub diameter / DHUB | 1.9291" | 49.000 mm |
| Mounting spigot diameter / DCONMS | 0.8661" | 22.000 mm |
| Insert | LD.. 15... | |
| torque moment | 3.2 Nm | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
