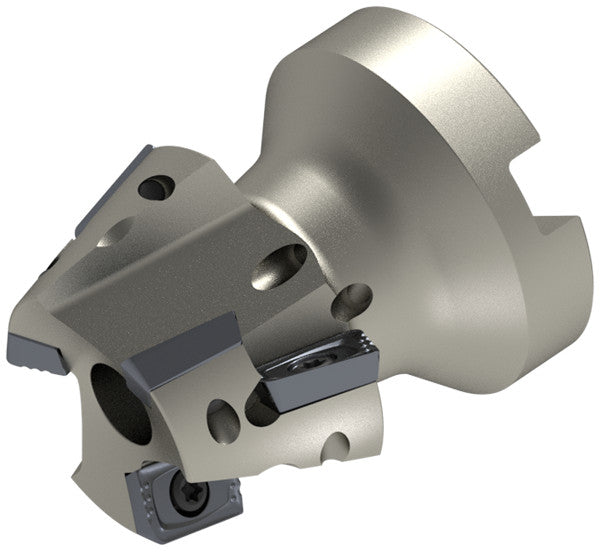

Ceratizit A242.50.R.03-15.75° CoreLine Chamfer Milling Cutter 242-15 5076817503 (0726083)
Ceratizit A242.50.R.03-15.75° CoreLine Chamfer Milling Cutter 242-15 5076817503 (0726083)
Couldn't load pickup availability
Ceratizit Article Number: 5076817503
Ceratizit Material Number: 14750403
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A242.50.R.03-15.75° CoreLine Chamfer Milling Cutter 242-15 5076817503 | |
| EDP # | 0726083 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 13.0 oz | 380 g |

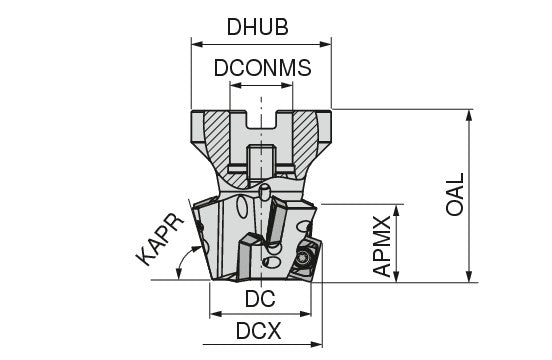

| Cutting diameter maximum / DCX | 1.9480" | 49.480 mm |
| Depth of cut maximum / APMX | 1.0512" | 26.700 mm |
| Face mounted insert count / ZNF | 3.0000" | 76.200 mm |
| Cutting diameter / DC | 1.3780" | 35.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| B ±0,3 | 1.0866" | 27.600 mm |
| Peripheral mounted insert count / ZNP | 2.0000" | 50.800 mm |
| Overall length / OAL | 2.3622" | 60.000 mm |
| Hub diameter / DHUB | 1.9291" | 49.000 mm |
| Mounting spigot diameter / DCONMS | 0.8661" | 22.000 mm |
| Insert | LD.. 15... | |
| Tool cutting edge angle / KAPR | 75 ° | |
| torque moment | 3.2 Nm | |
| Product-Carbon-Footprint | B | |
| Productsystem | 242-15 | |
| Machining process - Main Application | Chamfer milling Chamfer/Angle milling | |
| Minimum Extension (DIN 6535 HA) | 0.1969" - 0.2756" | 5.000 - 7.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
