Description
Ceratizit Article Number: 5878715004
Ceratizit Material Number: 57003018
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

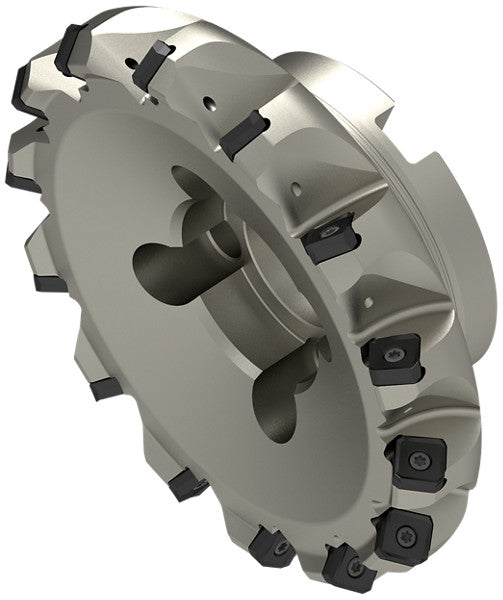

| Name | Ceratizit A271.150.R.04-12-A050-175-EF CoreLine Face Mills 271-12 5878715004 | |
| EDP # | 0726096 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Cast Iron (Red) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 12.0 oz | 330 g |
| Cutting diameter maximum / DCX | 2.0130" | 51.130 mm |
| Depth of cut maximum / APMX | 0.2670" | 6.780 mm |
| Face mounted insert count / ZNF | 4.0000" | 101.600 mm |
| Cutting diameter / DC | 1.5000" | 38.100 mm |
| Overall length / OAL | 1.7500" | 44.450 mm |
| Hub diameter / DHUB | 1.4210" | 36.090 mm |
| Mounting spigot diameter / DCONMS H6 | 0.5000" | 12.700 mm |
| Rotational speed maximum / RPMX | 18500 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | SOHU 1204.. / XOHU 1204.. | |
| Tool cutting edge angle / KAPR | 47 ° | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
