Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 5878780017
Ceratizit Material Number: 57003090
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

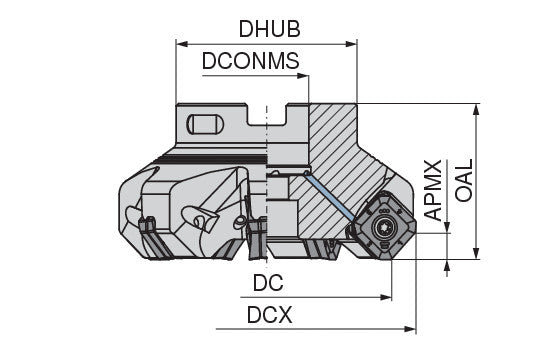

| Properties | ||
|---|---|---|
| Name | Ceratizit A271.800.R.17-12-C250-250-EF MaxiMill 271-12 Face Mill 5878780017 | |
| EDP # | 0726108 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Cutting diameter / DC | 8.0000' | 203.200 mm |
| Depth of cut maximum / APMX | 0.2670' | 6.782 mm |
| Face mounted insert count / ZNF | 17 | |
| Overall length / OAL | 2.5000' | 63.500 mm |
| Hub diameter / DHUB | 5.2000' | 132.080 mm |
| Mounting spigot diameter / DCONMS H6 | 2.5000' | 63.500 mm |
| Rotational speed maximum / RPMX | 6700 1/min. | |
| torque moment | 3.2 Nm | |
| Tool cutting edge angle / KAPR | 47 ° | |
| Insert | SOHU 1204.. / XOHU 1204.. | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
