Description
Ceratizit Article Number: 10350050
Ceratizit Material Number: 1035005000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

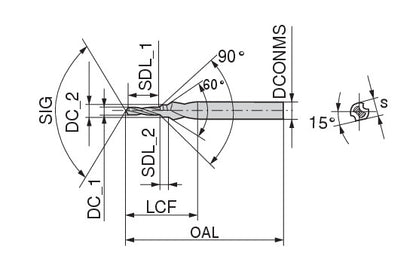

| Name | Ceratizit SB-N.4,20.R.60°.K.WN VAP Stepped Drills For centring, Factory Standard 10350050 | |
| EDP # | 0726764 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 29.0 g |
| Shank - DIN 371 | M5 | |
| Cutting diameter, 1st cutting step / DC_1 h8 | 0.1654" | 4.200 mm |
| Mounting spigot diameter / DCONMS h7 | 0.3937" | 10.000 mm |
| Cutting diameter, 2nd cutting step / DC_2 | 0.2087" | 5.300 mm |
| S | 0.3327" | 8.450 mm |
| Overall length / OAL | 2.6378" | 67.000 mm |
| Step diameter length 1 / SDL_1 | 0.5118" | 13.000 mm |
| Length chip flute / LCF | 1.0630" | 27.000 mm |
| Step diameter length 2 / SDL_2 | 0.0846" | 2.150 mm |
| Coating name / Grade (Ceratizit) / COATN | vap. | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
