Ceratizit SB-N.14,00.R.60°.K.WN VAP CoreLine Stepped Drills For centering, Factory Standard 10350160 (0726769)

Ceratizit SB-N.14,00.R.60°.K.WN VAP CoreLine Stepped Drills For centering, Factory Standard 10350160 (0726769)

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 10350160

Ceratizit Material Number: 1035016000

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

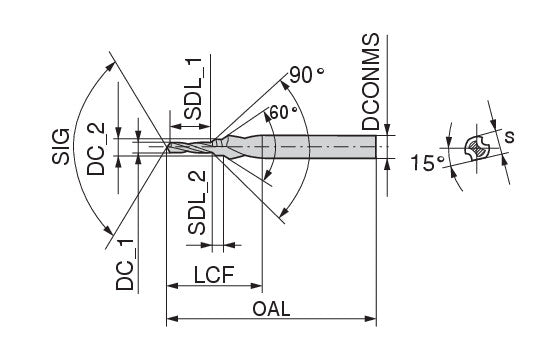

Properties
Name Ceratizit SB-N.14,00.R.60°.K.WN VAP CoreLine Stepped Drills For centering, Factory Standard 10350160
EDP # 0726769
Weight (1 pc.) 12.0 oz 336 g
Machining process - Main Application Solid drilling
Shank - DIN 371 M16
Cutting diameter, 1st cutting step / DC_1 h8 0.5512" 14.000 mm
Mounting spigot diameter / DCONMS h7 0.9843" 25.000 mm
Cutting diameter, 2nd cutting step / DC_2 0.6693" 17.000 mm
Insert thickness (S) 0.9213" 23.400 mm
Overall length / OAL 5.1969" 132.000 mm
Step diameter length 1 / SDL_1 1.2992" 33.000 mm
Length chip flute / LCF 2.6378" 67.000 mm
Step diameter length 2 / SDL_2 0.3268" 8.300 mm
SIG / SIG 118 °
Coating name / Grade (Ceratizit) / COATN vap.
Minimum Extension (DIN 6535 HA) 2.9134" - 2.9921" 74.000 - 76.000 mm


Tool Form:

'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
