Ceratizit N-SB.15,50.R.180°.DIN8377 VAP CoreLine Subland Twist Drills (DIN 8377) 10405140 (0726796)
Ceratizit N-SB.15,50.R.180°.DIN8377 VAP CoreLine Subland Twist Drills (DIN 8377) 10405140 (0726796)
Couldn't load pickup availability
Ceratizit Article Number: 10405140
Ceratizit Material Number: 1040514000
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

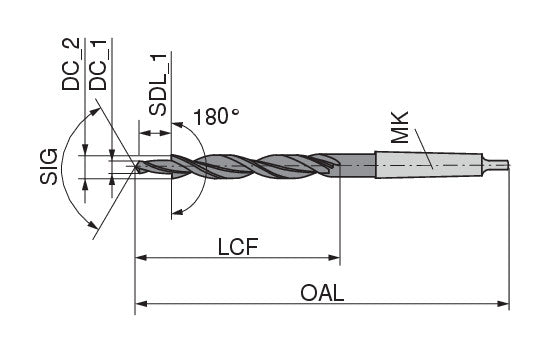

| Properties | ||
|---|---|---|
| Name | Ceratizit N-SB.15,50.R.180°.DIN8377 VAP CoreLine Subland Twist Drills | |
| EDP # | 0726796 | |
| Weight (1 pc.) | 21.0 oz | 596 g |
| Machining process - Main Application | Solid drilling | |
| Shank - DIN 371 | M14 | |
| Cutting diameter, 1st cutting step / DC_1 h9 | 0.6102" | 15.500 mm |
| Cutting diameter, 2nd cutting step / DC_2 | 0.9449" | 24.000 mm |
| Overall length / OAL | 11.0630" | 281.000 mm |
| Step diameter length 1 / SDL_1 | 1.2205" | 31.000 mm |
| Length chip flute / LCF | 6.2992" | 160.000 mm |
| Morse taper adapter size | 3.0000" | 76.200 mm |
| Coating name / Grade (Ceratizit) / COATN | vap. | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
