Ceratizit N-ZB.5,00.R.DIN333-A TIN CoreLine Centre Drills (DIN 333), Form 10425500 (0726819)
Ceratizit N-ZB.5,00.R.DIN333-A TIN CoreLine Centre Drills (DIN 333), Form 10425500 (0726819)
Couldn't load pickup availability
Ceratizit Article Number: 10425500
Ceratizit Material Number: 1042550000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

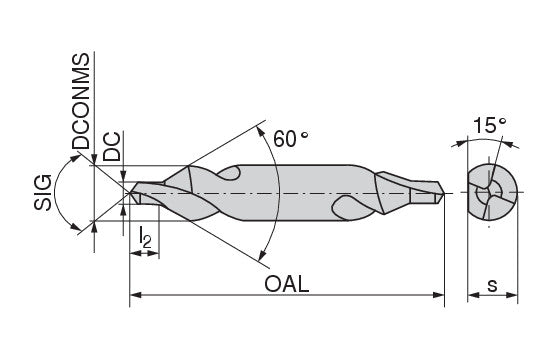

| Properties | ||
|---|---|---|
| Name | Ceratizit N-ZB.5,00.R.DIN333-A TIN CoreLine Centre Drills | |
| EDP # | 0726819 | |
| Weight (1 pc.) | 1.0 oz | 38.0 g |
| Machining process - Main Application | miniature holes | |
| Cutting diameter / DC | 0.1969" | 5.000 mm |
| Mounting spigot diameter / DCONMS h8 | 0.4921" | 12.500 mm |
| Overall length / OAL | 2.4803" | 63.000 mm |
| L2 | 0.2480" | 6.300 mm |
| Hand / HAND | R | |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
| Minimum Extension (DIN 6535 HA) | 0.6299" - 0.7087" | 16.000 - 18.000 mm |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
