Ceratizit N-ZB.1,25.L.DIN333-A CoreLine Centre Drills (DIN 333), Form 10435125 (0726824)
Ceratizit N-ZB.1,25.L.DIN333-A CoreLine Centre Drills (DIN 333), Form 10435125 (0726824)
Couldn't load pickup availability
Ceratizit Article Number: 10435125
Ceratizit Material Number: 1043512500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

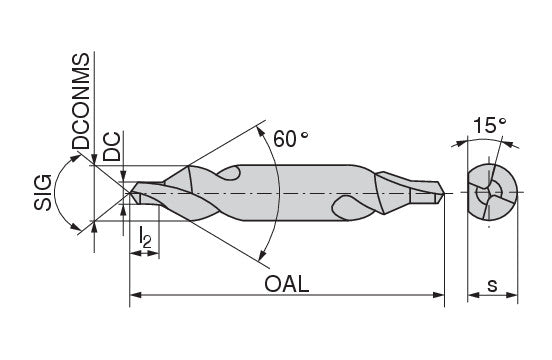

| Properties | ||
|---|---|---|
| Name | Ceratizit N-ZB.1,25.L.DIN333-A CoreLine Centre Drills | |
| EDP # | 0726824 | |
| Weight (1 pc.) | 0.1 oz | 3.8 g |
| Machining process - Main Application | miniature holes | |
| Cutting diameter / DC | 0.0492" | 1.250 mm |
| Mounting spigot diameter / DCONMS h8 | 0.1240" | 3.150 mm |
| Overall length / OAL | 1.2402" | 31.500 mm |
| L2 | 0.0630" | 1.600 mm |
| Hand / HAND | L | |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
| Minimum Extension (DIN 6535 HA) | 0.0591" - 0.1378" | 1.500 - 3.500 mm |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
